Changeable C Z Purlin Roll Forming Machine

  • Changeable C Z Purlin Roll Forming Machine
  • Changeable C Z Purlin Roll Forming Machine
  • Changeable C Z Purlin Roll Forming Machine
  • Changeable C Z Purlin Roll Forming Machine

Changeable C Z Purlin Roll Forming Machine

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: As customer's need
    Productivity: 15-20m/min
    Brand: zhongtuo
    Transportation: Ocean,Land,Air
    Place of Origin: China(mainland)
    Supply Ability: 30 sets/month
    Certificate: CE,ISO,SGS,IAF,CNAS.

Basic Info

Model No.: ZT-006-10001

Product Description

Quick Interchangeable CZ Purlin Roll Forming Machine
One machine can produce different sizes of purlines.

Main Technical Specifications:
Material: Carbon steel
Material Thickness:1.5-3mm
Landscape orientation adjustment range of Hole distance : 45-500m
Length of purlin: >3m
Forming Stations: 17 Main rollers
Leveling Stations: 7
Feeding Stations: 2
Main Power: 15KW
Machine Diameter: About 12500mm(L)x2300mm(W)x1600mm (H) ( including main motor )
Weight of machine: about 15 Ton


One machine can produce different C/Z Purlins through simple manual st adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.

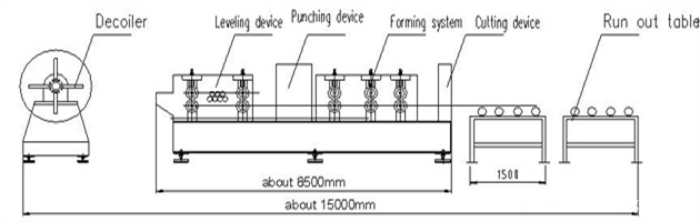

C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, run out tables.

This line main forming drive adopt reducer motor and frequency conversion control, speed control-

Product application of C shape purlin roll forming machine

They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Our Metal CZ shape Purlin Roll Forming Machine`s advantages

1. Anti-rust roller: Cr12 mould steel with quenched treatment, long life time.
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.
8. Long life: Ensure you our produce machine`s lifetime more than 15 years.

It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.

Zhongtuo Roll Forming Machinery Co., ltd




Cangzhou ZHONGTUO roll forming machinery is a professional manufacturer and exporter which is concerned with the design, development and production of cold roll forming machines. The company cooperates with several production factories and associated enterprises.

Engineers and technicians are rich in experience of designing, developing, and manufacturing of machines. We pay close attention to new trend of technologies. All products comply with international quality standards and are greatly appreciated in markets throughout the world.
