Top CNC gantry machining center cnc gantry type milling machine large cnc milling machine

Product Description

Product Description

Top CNC Gantry Machining Center cnc gantry type Milling Machine large CNC Milling Machine

Gantry Machining Center Main Feature

Gantry Milling Machine 5 axis machining center cnc inherits the advantages of rigid rigidity, structural symmetry and strong stability of the traditional gantry machine frame. It introduces the international advanced dynamic rigid design concept and optimizes the design of moving parts. The Machine Tool has large torque and good fast response characteristics, and is suitable for various mechanical processing fields such as automobile, mold, aerospace, military, and hardware.

Heavy Duty Cnc Gantry Milling Machine Overall layout
The overall layout of the machine tool is fixed-column fixed-column gantry frame structure, the base is fixed, and the workbench moves X-direction on the base; the column is fixed on the base, the beam is fixed on the column, and the sliding seat moves in the Y direction on the beam; the ram is in the sliding seat Move in the Z direction.

Structural Features of CNC Parts Processing Gantry Machining Center Milling machine :
High rigidity and long-term precision retention:

1. The main large parts of the machine tool: the base, the workbench, the column, the beam, the sliding seat and the ram are all made of high-quality resin sand, high-strength high-quality cast iron, with a complete heat treatment process to eliminate residual stress and arrange enough reinforcement. The plate ensures sufficient strength, rigidity and high stability of the machine.
2. The XY axis adopts heavy-duty roller guide rail with strong rigidity and good dynamic precision.
3. The three-axis transmission adopts the Taiwan brand large-diameter grinding double-nut ball screw, which has compact structure, stable movement and high precision. The screw support is supported by a precision screw rod, and the two ends are pre-stretched to eliminate the loss of precision caused by thermal elongation.
4. The beam adopts a stepped structure. The cross section of the beam is large, the span of the guide rail is large, the distance from the center of the main shaft to the surface of the guide rail is short, the turning torque is small, and the structural rigidity is good.
5. The high-rigid Taiwan brand gantry special spindle, which is lubricated with grease, can make the spindle bearing have constant and reliable lubrication, which is economical and environmentally friendly and realizes long-term maintenance-free.

High precision, high dynamic response characteristics:
1. The spindle adopts high-precision angular contact ball bearing to achieve high rigidity and high spindle rotation accuracy.
2, XY axis roller guide, high precision, large load. The friction is low, the low-speed crawling phenomenon of the machine tool is reduced, the positioning accuracy is good, and high dynamic response characteristics are obtained at the same time.
3. The Z-axis adopts a dual-motor drive structure, and its dynamic response speed is higher than the traditional nitrogen balance and hydraulic balance structure, with stable operation and high precision.

high efficiency:The spindle speed can reach 5000rpm, and the three-axis rapid movement can reach 10/12/10m/min.

Large processing range:Compared with the same specification machine, the machine's 2.5m door width ensures a wider processing range.

Main Parameter
Machine Type
Workbench size
Door width
Workbench load bearing
T-slot width
X/Y/Zaxis travel
Spindle end to table distance
Taper hole type
Pull stud specifications
P50T-1-MAS403 (45°)
Speed range
Main drive form
Spindle motor + ZF gearbox + belt
Cutting feed rate range
X-axis rapid movement
System configuration FANUC Oi MF 1 package
X/Y/Z axis motor
Spindle motor αiI22

Triaxial guide rail specifications
X-axis 2-55# roller rail
Y-axis 2-55# roller track
Z-axis square ram

Triaxial screw specifications
X-axis 8016
Y axis 6316
Z axis 5010

Bearing specifications
X-axis 60TAC120B
Y axis 50TAC100B
Z axis 40TAC90B
Mainframe dimensions about
7890X4850X5130(highest point of travel)
Host weight approx.
Process Details

Bed Body

The structure of the machine tool isanalyzed with ANSYS at all stages from foundation design to gurantee high speed and high precision continouos machining.A simulation testing for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.


The gear type spindle variable speed device provides powerful torque during peration at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range.

By enlarging diameter of spindle ends and flanges, the spindle with roller bearing could strengthens all factors related to spindle system.

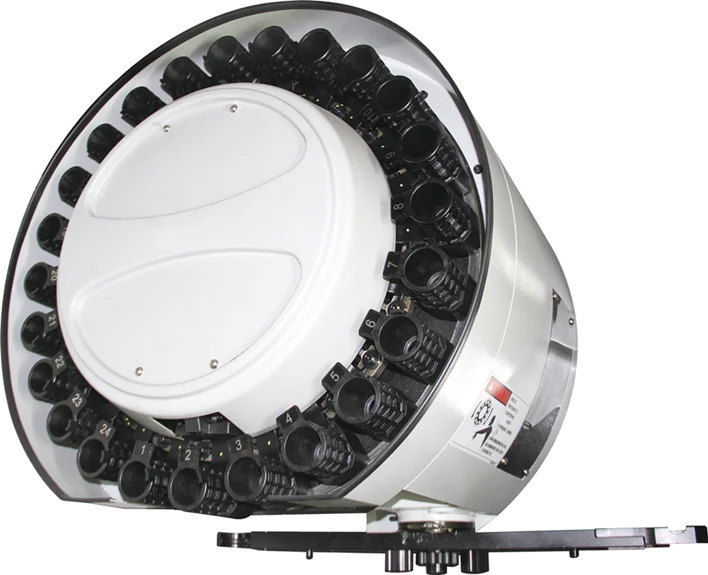

ATC(Automatic Tool Changer)

Automatic tool changer is composed of tool maagazine and tool changing arms.Automatic toolchanger is installed separately from machine tool with the purpose of preventing adverse influences of vibration during running of automatic toolchanger and other reasoons on precision. Tool selection adopts the method of fixed address in the shartest path.
